ADJ Focus Spot 6Z

68,97 € *

* monatliche "alternative Mietkaufrate"

Laufzeit: 72 Monate
Gesamtkosten: 4.965,84 €

Wie kommen die Gesamtkosten zustande?

Ware wird nach Vertragsabschluss bestellt

inkl. MwSt. Versandinformationen

  • 02700267
The Focus Spot 6Z is powered by a brilliant 300W cool white LED engine that produces vibrant,... mehr
Produktinformationen "ADJ Focus Spot 6Z"

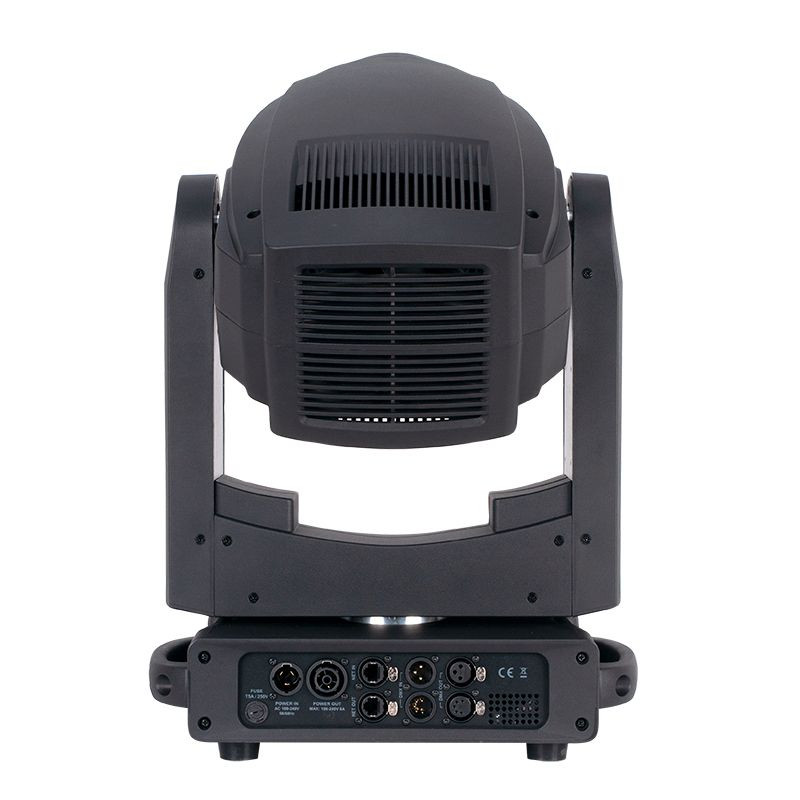

The Focus Spot 6Z is powered by a brilliant 300W cool white LED engine that produces vibrant, saturated colors and is equipped with motorized focus, zoom (9~28-degree zoom), Iris and two prisms. It is designed for temporary live events and fixed installations in nightclubs, stages or churches. It is professionally fit with two GOBO wheels (7 GOBOs per wheel), two COLOR wheels, each with 7 vibrant colors plus white, and 2 rotating/indexable prisms, (one 6-facet linear and one 6-facet circular). It also has two frost effects (heavy frost and light frost).

The Focus Spot 6Z has locking power In and out connectors to daisy chain the power, as well as locking 3-pin and 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. It also has RJ45 In/Out connections to control with ArtNet and KlingNet. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 6Z offers a robust light output in a light weight, compact foot print.

Specifications

Source:

  • Source: Cool White LED Engine
  • Individual LED wattage : 300W
  • Lumens: 11.000
  • Average lifetime: approximately 50,000 hrs



Optics:

  • Motorized Zoom: 9 ~ 28-degrees
  • Motorized Focus
  • Rotating 6-facet Linear & rotating 6-facet Circular Prism with overlay
  • Linear Heavy frost for wash effect & Light frost that creates lightly blurred edges for GOBO and prism
  •  Motorized Iris


Control:

  • 3 operational modes : DMX, ArtNet or KlingNet control
  • 3 DMX Channel Modes: 21, 25 & 29 Channels
  • RDM compatible (Remote Device management)
  • 16bit dimming 0-100%
  • 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
  • Adjustable Dim Curves: Linear, Square, Inv. Square, S-Curve
  • Adjustable LED Refresh Rate from 900Hz to 25kHz for flickerfree operation
  • Various strobe effects
  • 6-button Color display
  • Battery inside, allowing to access the fixture Menu without power connection
  • 16bit Pan: 540 & 630 degrees
  • 16 bit Tilt: 270 degrees
  • 3 Fan settings : Auto, High and Low Noise


Colors:

  • 2 separate color wheels each with 7 dichroic colors + white (includes CTO, CTB and UV filters)


Gobos:

  •  Gobo wheel 1 with 7 aluminum GOBOs + open
  • Gobo wheel 2 with 7 aluminum GOBOs + open
  • All gobos removable, rotatable and indexable
  • Metal GOBO Size: 23mm (outer), 19mm (viewable), 0.5mm (thickness)
  • Glass GOBO Size: 23mm (outer), 19mm (viewable), 1.6mm (thickness)
  • Gobo Shake Effect


Construction:

  • Rugged metal construction with plastic covers
  • Omega brackets with quick locks



Electrical:

  • Multivoltage : 100-240V 50/60Hz
  • Power Draw : 380W


Connections:

  • Locking 3- & 5-pin DMX In/Out
  • IP65 Locking Power In/Out
  • Locking RJ45 In/Out for ArtNet and KlingNet Operation
  • USB firmware update port


 Dimensions & Weight:

  •  Dimensions: 320 x 234 x 560mm
  •  Weight: 19,4 kg.
