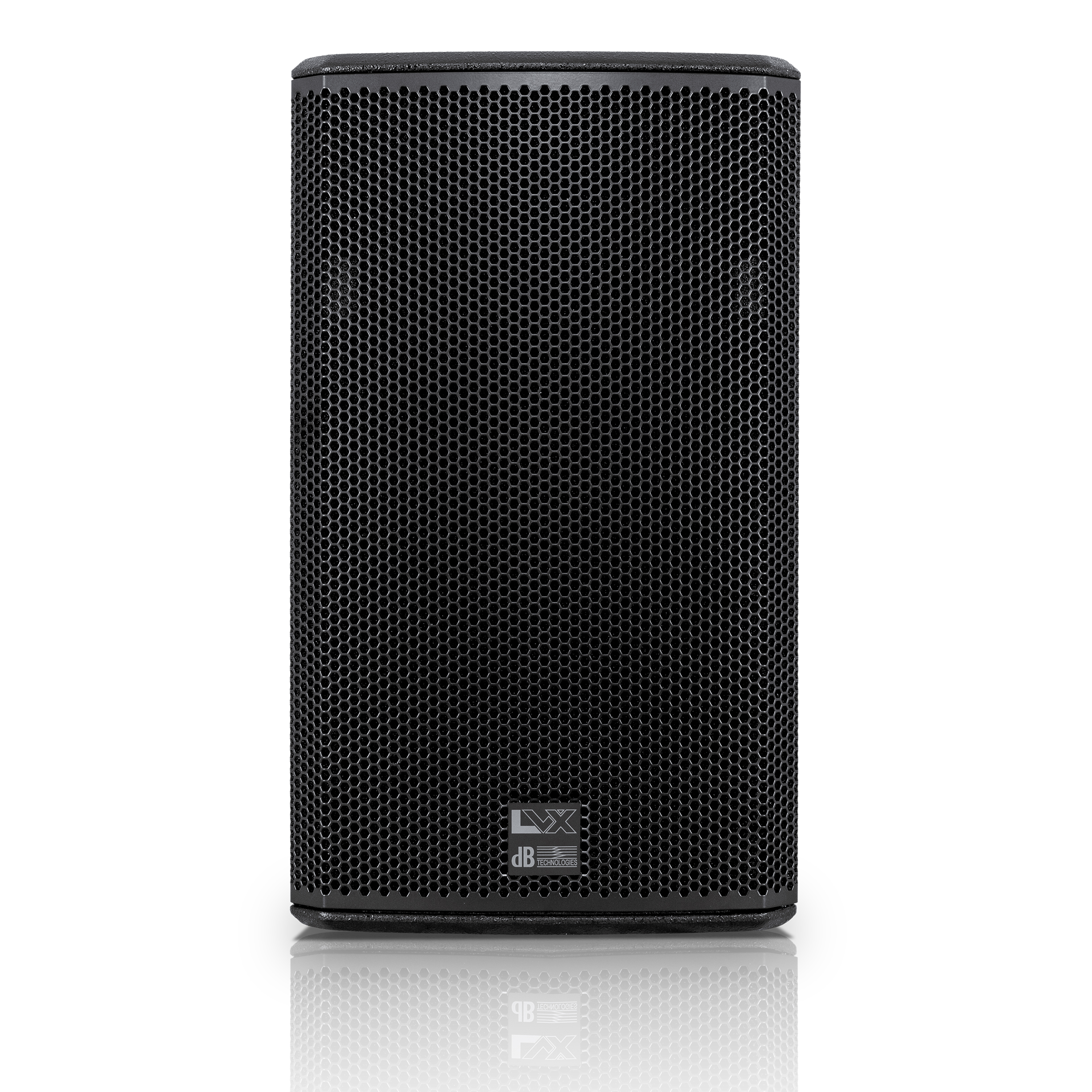

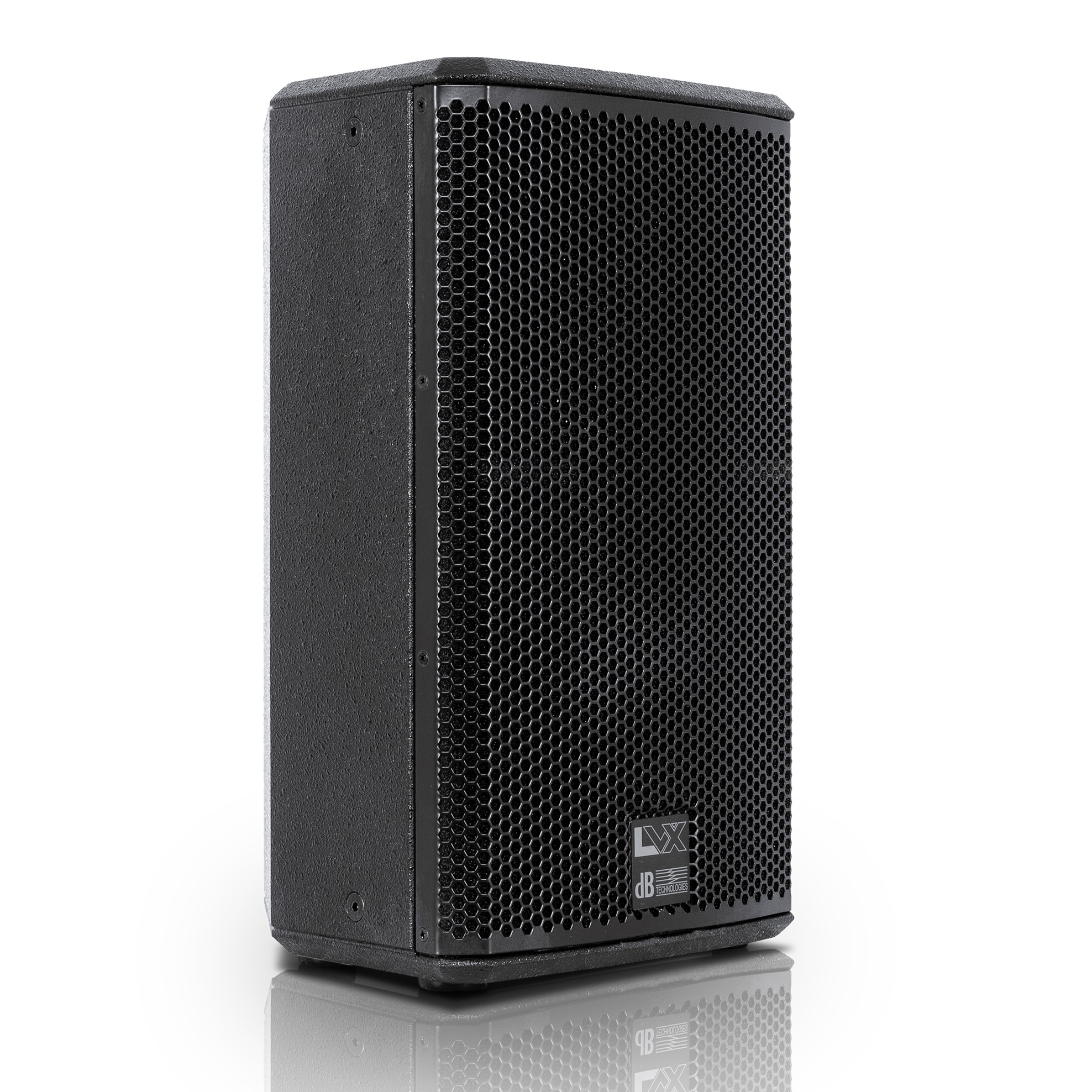

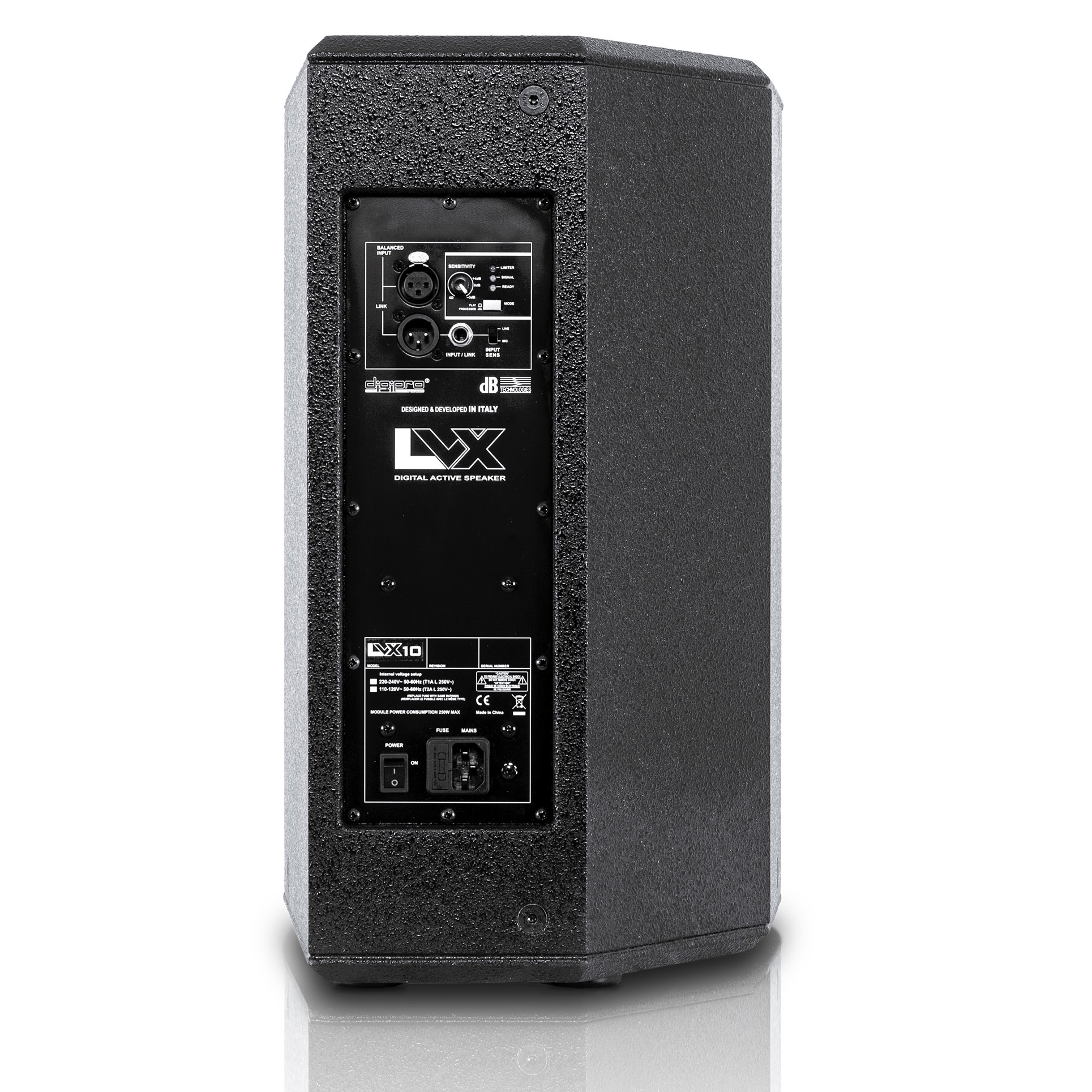

dB Technologies LVX10

Technische Daten

• Speaker Type: 2-Way Active Speaker

Akustische Daten

• Frequency Response [- 10dB]: 60 - 20.000 Hz
• Frequency Response [- 6dB]: 70 - 19.000 Hz
• Max SPL: 125 dB
• HF: 1"
• Directivity: 90 x 70°
• Horn: Rotatable CD Horn
• LF: 10"

Verstärker

• Amp Technology: Digipro® G2
• Amp Class: Class-D
• PRG Power: 400 W
• Peak Power: 800 W

Prozessor

• Controller: DSP 24bit/48kHz
• System Presets: Flat, Processed
• Limiter: Dual Active Peak, RMS, Thermal
• Crossover Frequency LF-HF: 2050 Hz
• Slope MF-HF: 24dB/Octave

Mechanik

• Housing: MDF

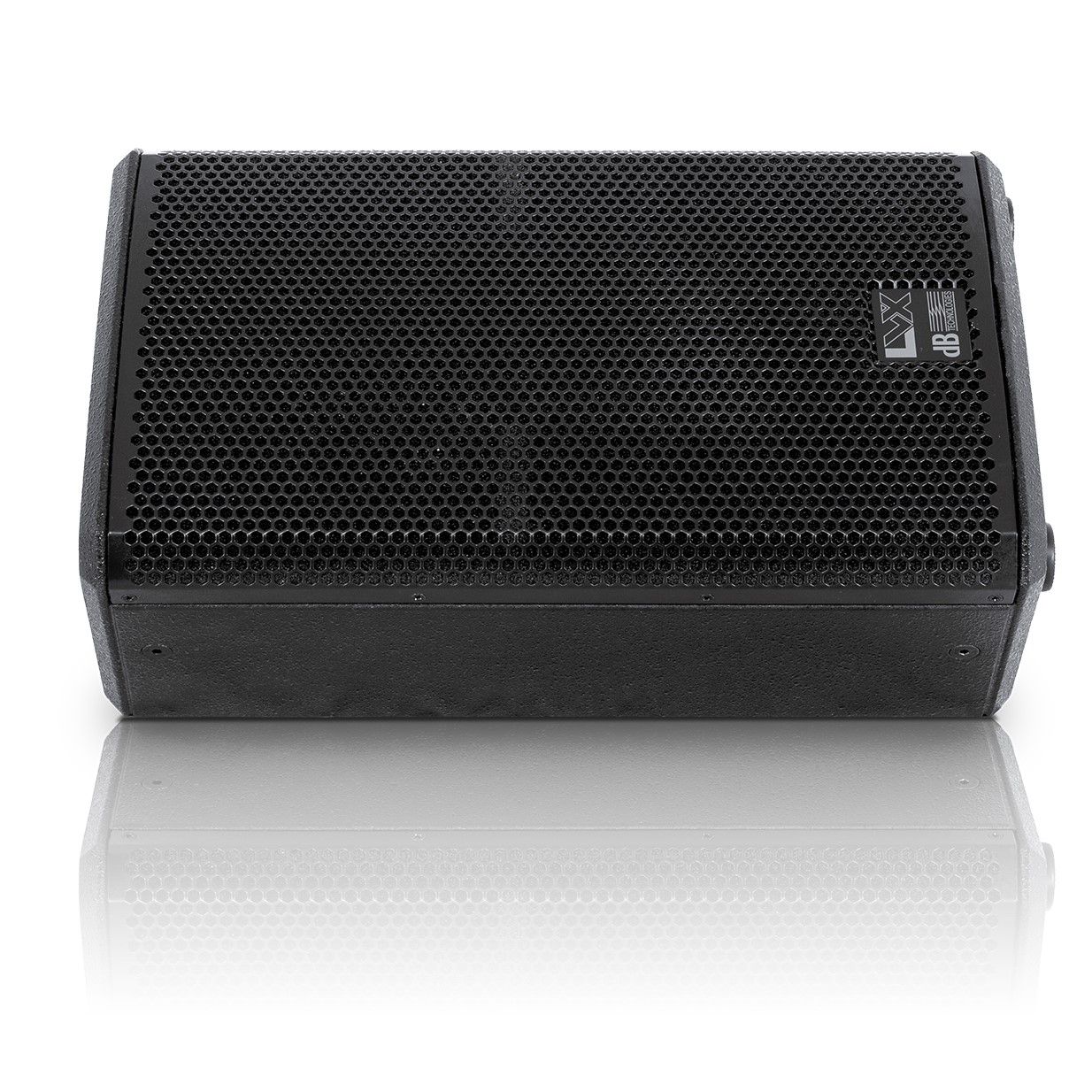

• Angles Up: Monitor use 40°
• Handles: 1x top side
• Rigging Points: 12x M8
• Pole Mount: D36 mm
• Width: 300 mm
• Height: 480 mm
• Depth: 300 mm
• Weight: 13,5 kg
