Electro Voice EKX-12P

• QuickSmartDSP features best-in-class processing, EVs signature single-knob user interface, and intuitive menu navigation via LCD.
• High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
• Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
• Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

Maximum SPL    132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
Power Consumption    1.8 A Current rating is 1/8 power
Power Rating    1500 W
Frequency Response (-3 dB)    60 Hz - 18 kHz Hz Full space measurement using the music DSP preset.
Frequency Response (-10 dB)    50 Hz - 20 kHz Hz Full space measurement using the music DSP preset.
Coverage (Nominal -6 dB) H    90 °
Coverage (Nominal -6 dB) V    60 °
LF Transducer    EVS-12M 300 mm (12 in)
HF Transducer    DH-1M 1-inch titanium compression driver
Crossover Frequency    1.7 k Hz

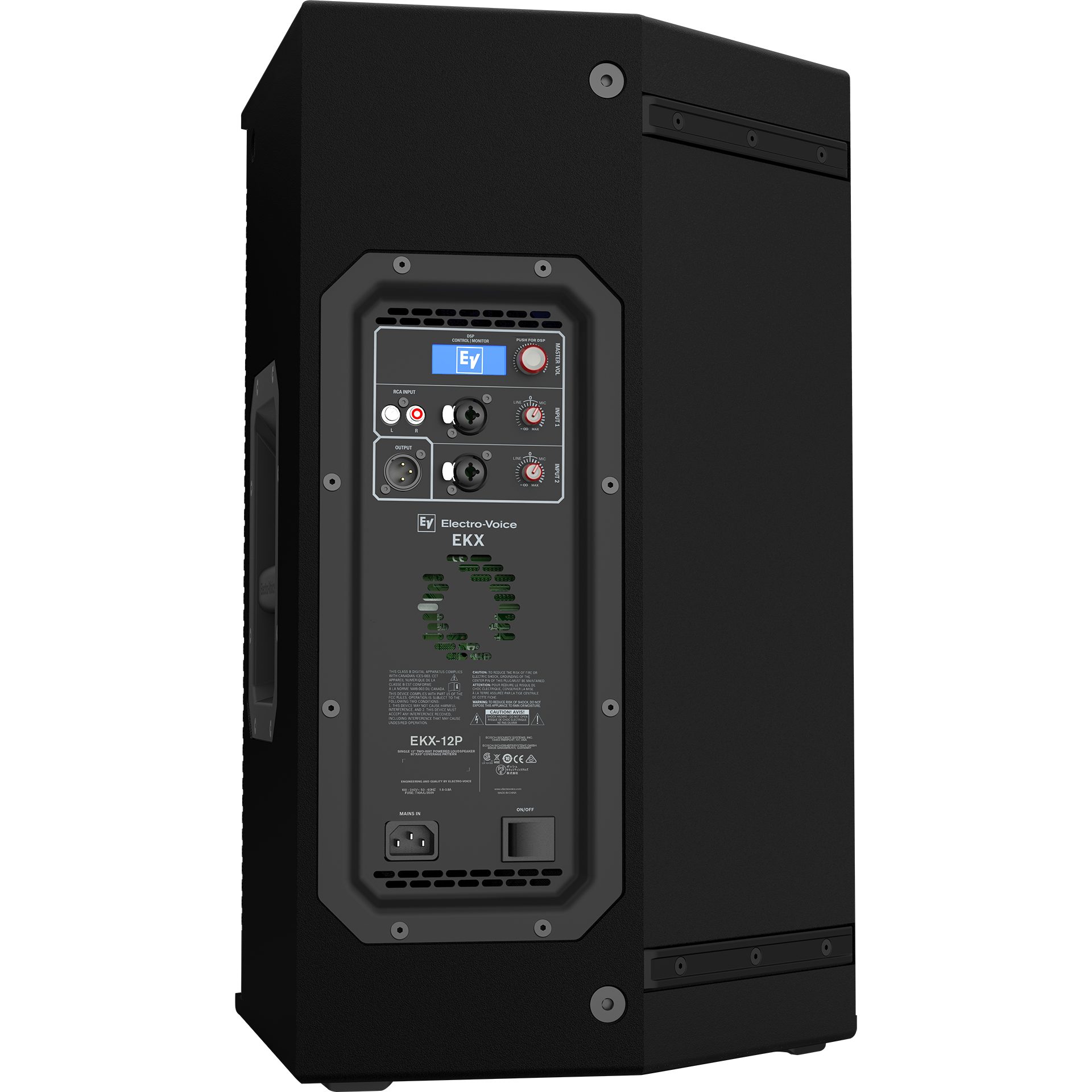

Connector Type    (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure Material    15 mm, plywood with EVCoat
Grill    18 AWG steel with powdercoat

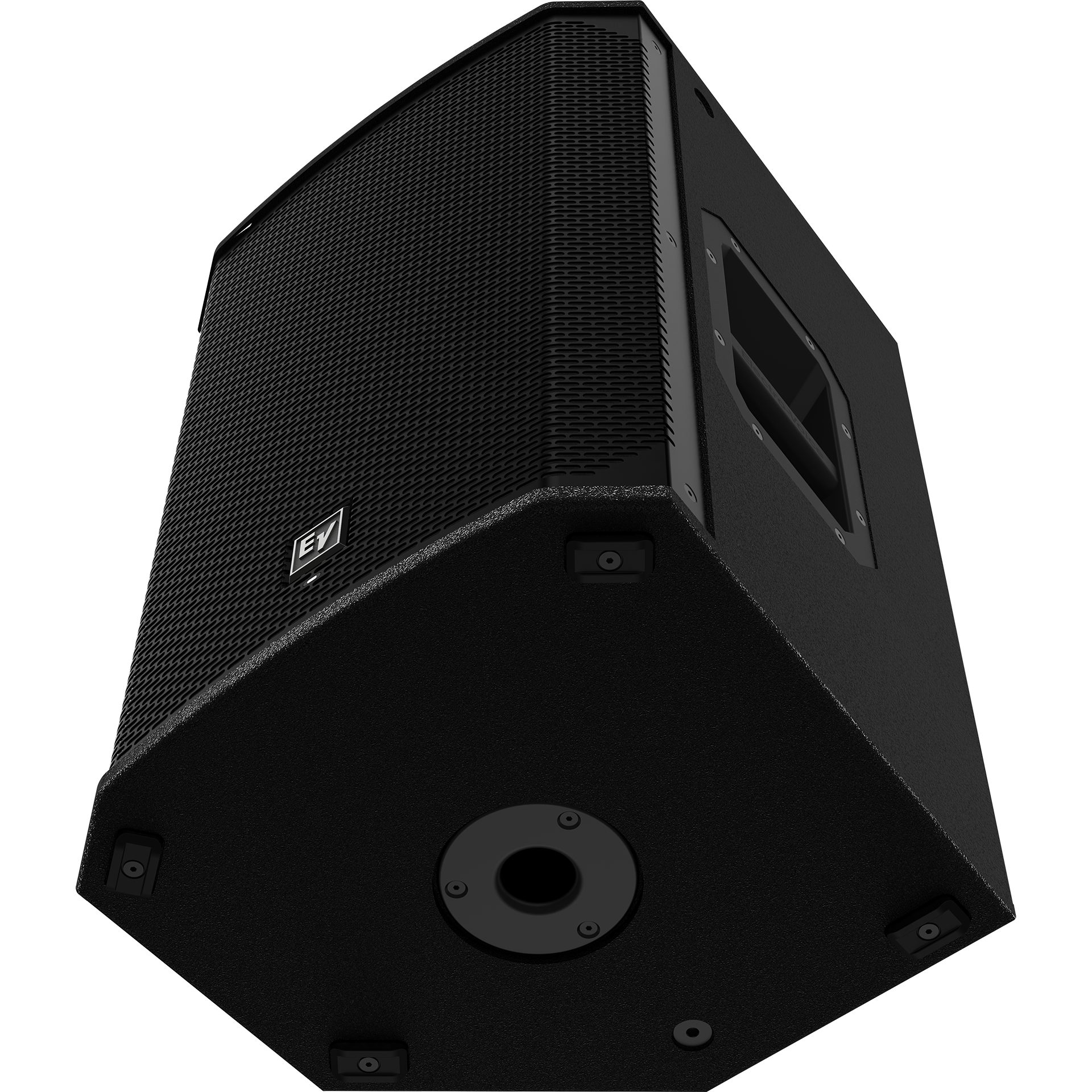

Suspension    (8) M10 threaded mounting points
Height    607 mm (23.9")
Width    375 mm (14.76")
Depth    356 mm (14.02")
Weight Net    18.8 kg (41.45 lbs)
Shipping Weight    22.9 kg (50.49 lbs)
