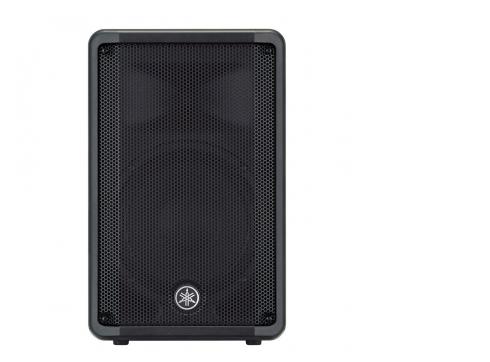

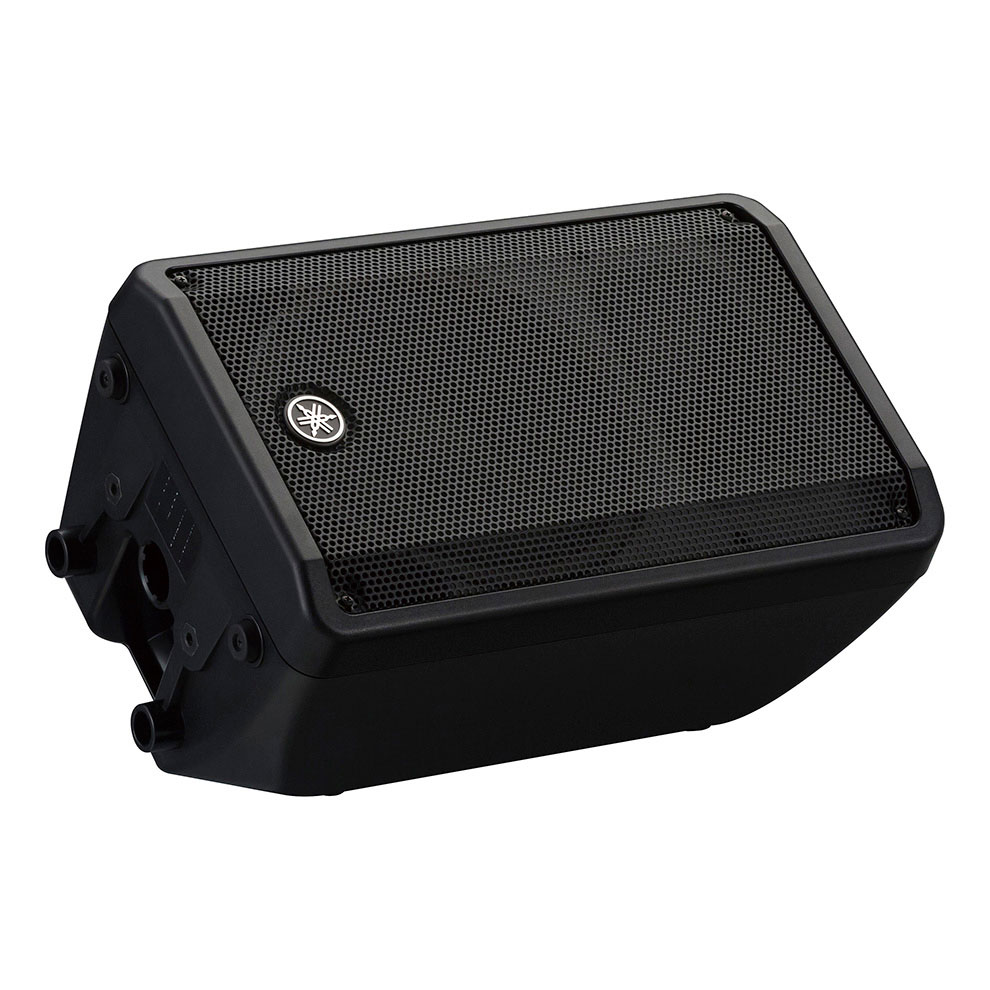

Yamaha DBR10

Bei der DBR10 handelt es sich um das kompakteste Modell der Reihe. Die Box ist trotz des kompakten Gehäuses in der Lage, bis zu 129 dB Schalldruck zu liefern und eignet sich bei einer Vielzahl von Anwendungen perfekt als Standardlautsprecher.



Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type

Frequency range (-10dB): 55Hz 20kHz

Nominal coverage:
H     90°
V     60°

Components:
LF     Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
HF     Diaphragm:1", Type: 1" throat compression driver, Magnet:Ferrite

Crossover: 2.1kHz: FIR-X tuning (linear phase FIR filter)

Output power: Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)

Maximum output level (1m; on axis):     129dB SPL

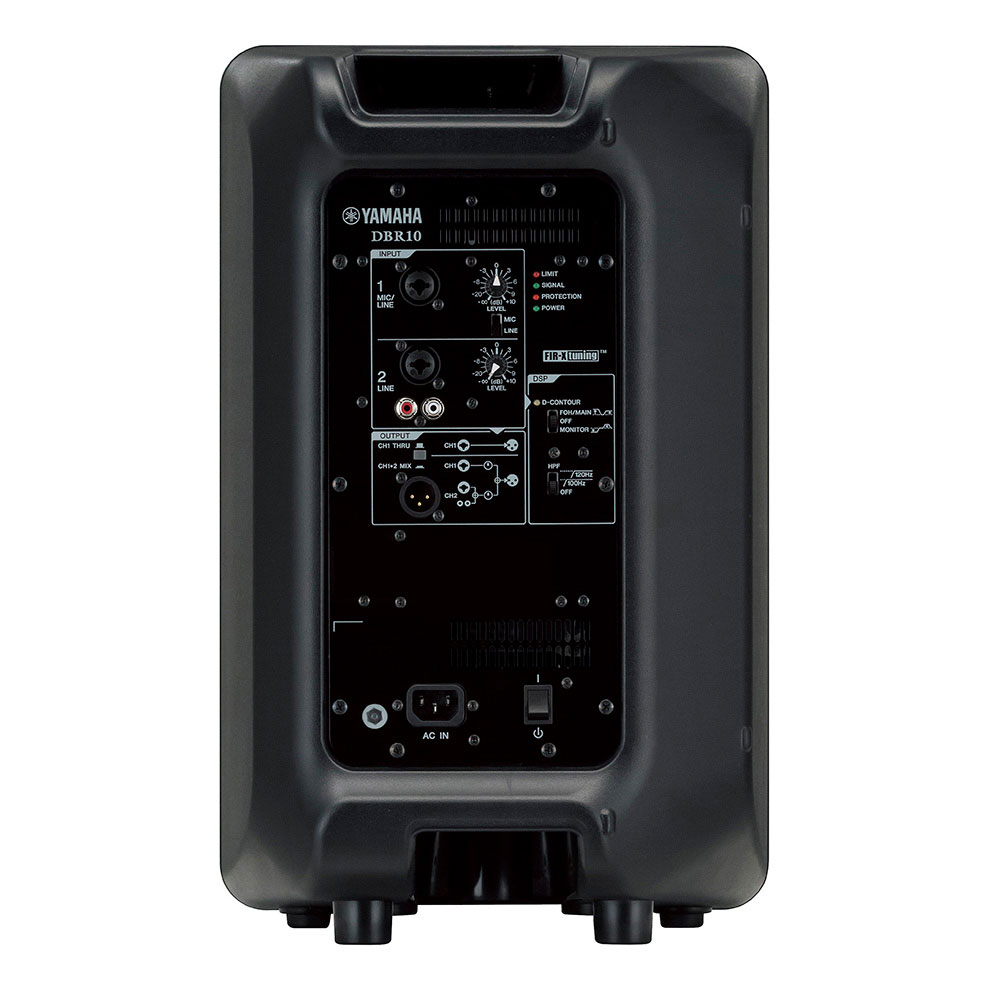

I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)

Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF

Heat dissipation: Fan cooling, 4 speeds

Power requirements: 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz

Power consumption: 60W(1/8 Power Consumption), 18W(Idle)

Cabinet material: Plastic

Finish: Black

Handle: Top x 1

Flying and mounting hardware: Bottom x 2 (Fit for M8 x 15 mm eyebolts)

Pole socket: 35mm (Bottom x 1)

Dimensions:
W     308mm (12.1")
H     493mm (19.4")
D     289mm (11.4")

Net weight : 10.5 kg
