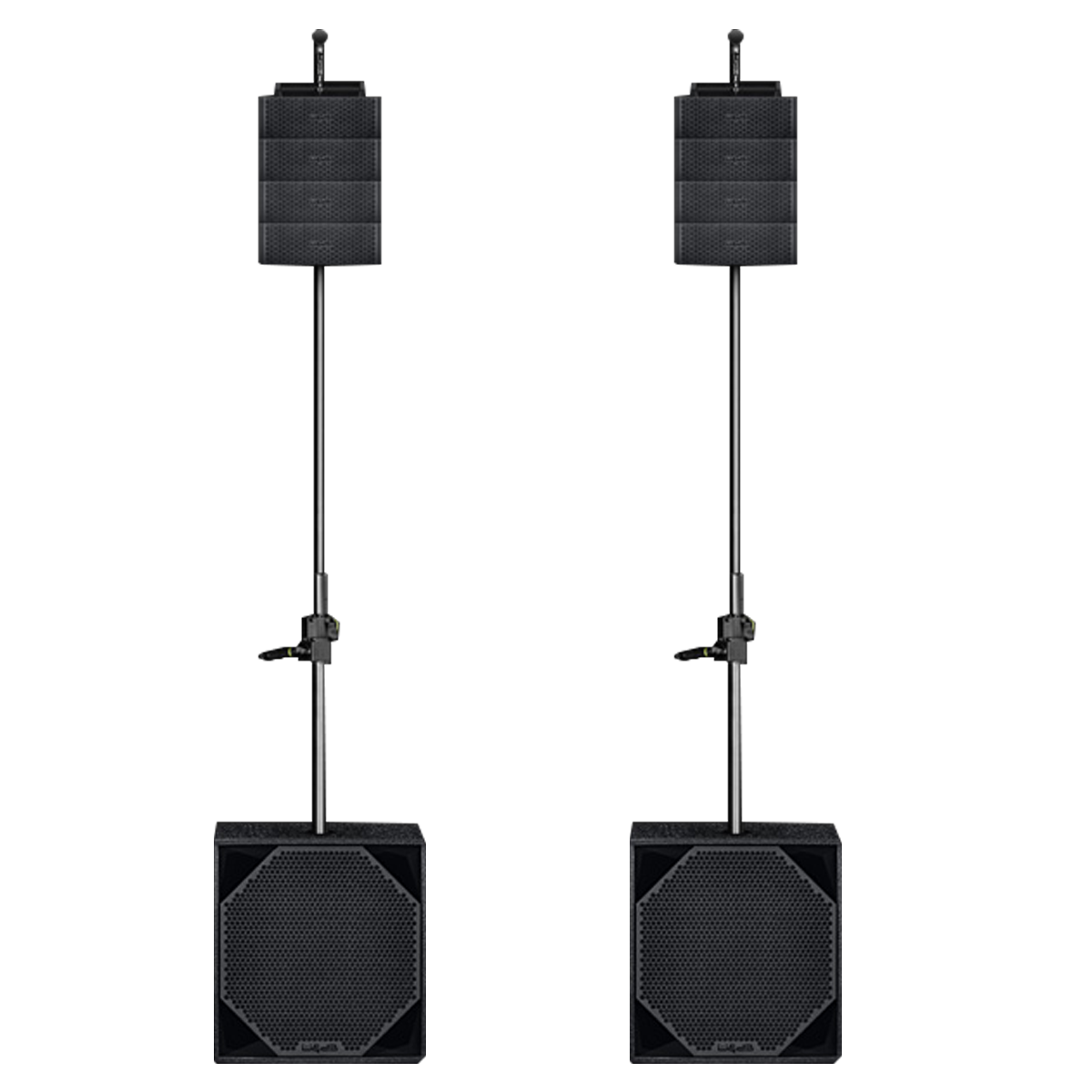

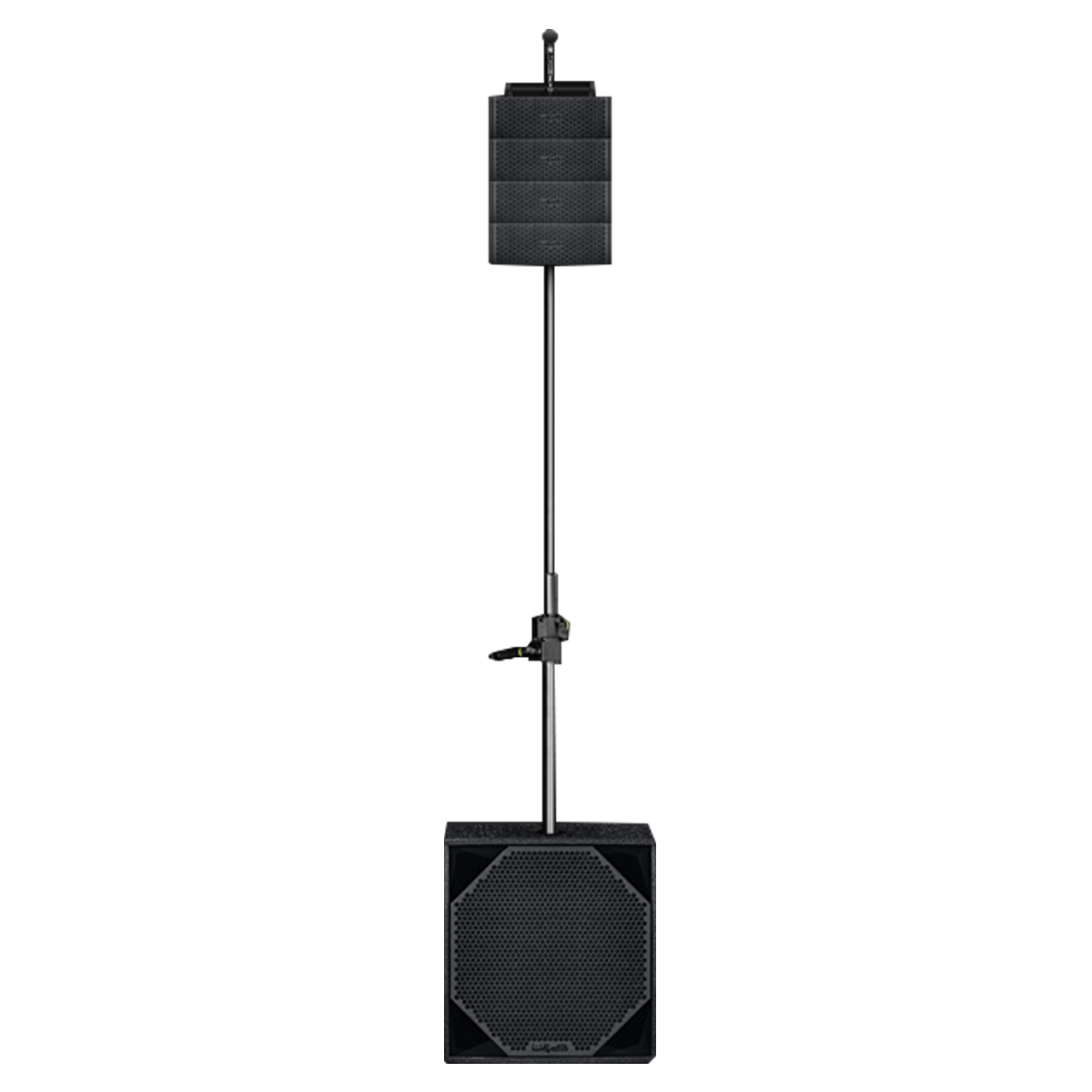

w&dB Bonsai Maxx - 2 x 18" + 4 x per side

Bonsai 4 x per side system 2 x 18" Subwoofers
Mini Line Array System. 8 units + 2 Subwoofers. Self Powered / DSP.
Includes 6 x Bonsai 2x3", 2 x Bonsai 1x3" + driver.
2 x Subwoofers 18" SB18A, flying system, poles and cables.

Mid/High

• Transducers: 2 X 3″
• Coverage: 60° AXL
• Nominal impedance: 16Ω
• Power AES: 60W
• Maximun Peak SPL: 119 dB SPL
• Frecuency Range`: 150 Hz to 20 kHz
• Sensibility (1 W@ 1m): 1w @ 1m: 94 dB four units
• Weigth: 1.9 Kg
• Enclosure Geometry: Trapezoidal
• Angle adjustment: 1º x 1º
• Dimensions (WxHxD): 197 x 93 x 130 mm.
• Enclosure Material: LAP wooden / H 1O mm.
• Rigging: Steel
• Finish: Polyurethane
• Colour: Black
• Connections: 2 x BNC

Subwoofer

• Transducer: 18”
• Amplification: Pascal Audio + DSP
• Nominal Impedance: 8Ω
• Power AES: 131 dB
• Max. Peak SPL: 104 dB
• Freq. Range: 35 Hz to 150 Hz
• Sensibility (1 W@ 1m): 104 dB
• Weight: 45 kg
• Dimensions: 506 x 506 x 610 mm.
• Enclosure Material: Wisa Plywood Byrch
• Finish: Polyurethane
• Connections: 2 x Speakon NL4
