ADJ Encore FR Pro WW

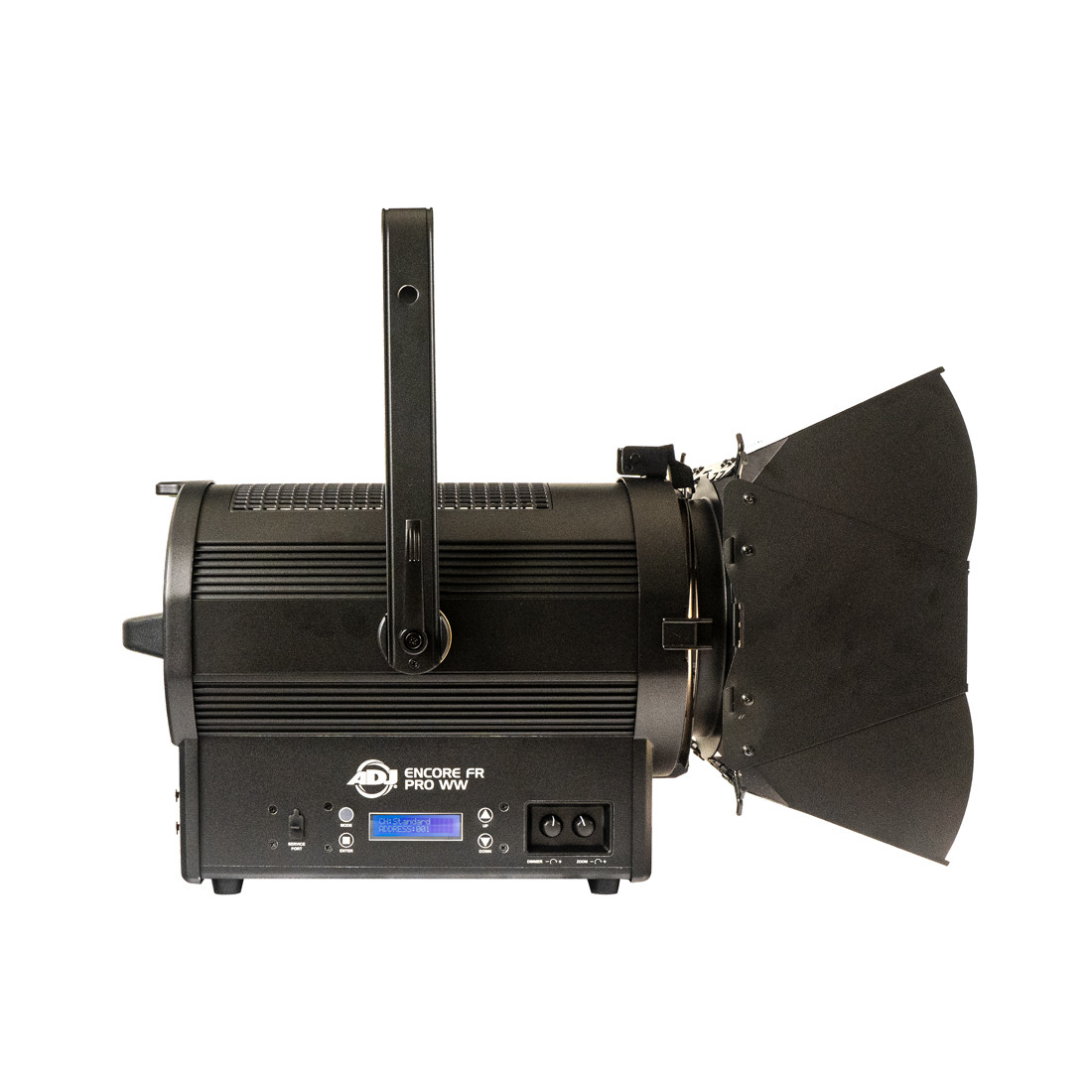

The ADJ Lighting Encore FR Pro WW is a professional grade Fresnel fixture with a 7-inch lens designed for key light, as a fill light and as a back light. It offers a potent 200W warm white LED

The Encore FR Pro Color has a motorized zoom (beam angle of 10~46°), a CRI rating of 97.2 with an output of more than 12,000 Lumens. There are an abundant of on-board features such as 4 DMX control modes, 4 Dim Curves, 6 Dim Modes and adjustable refresh rates.

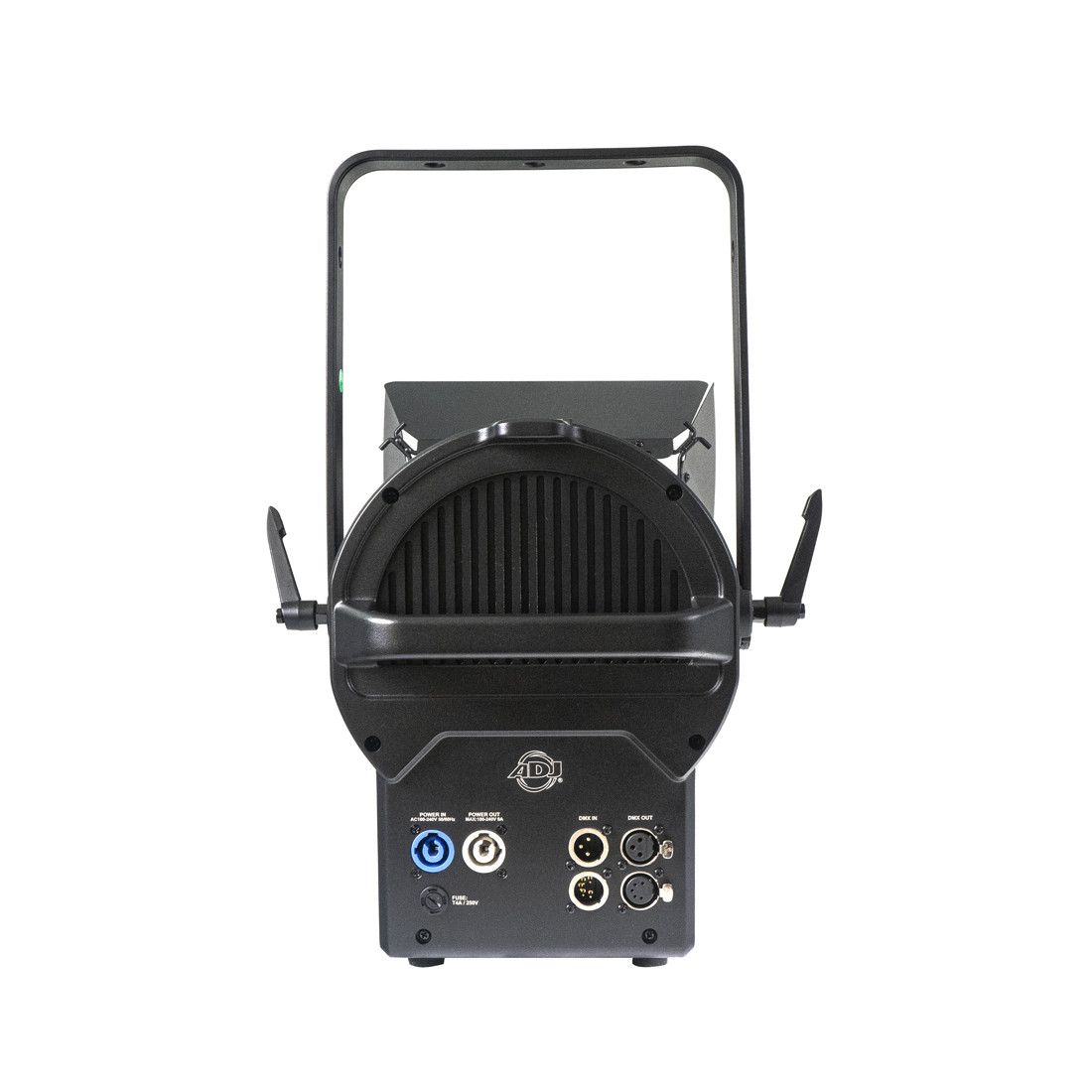

The fixture has DMX-512 and RDM protocols, a USB service port, a 4-Button control panel LCD menu display, 2 rotary controls for Zoom en Dimmer 3 & 5-pin DMX In/Out sockets and locking power In/Out to daisy chain power from one fixture to another.

A rotating 8-leaf barn door, gel frame and power cord are included with the fixture.


Specifications

Source:

•  1X200W WW LED
•  50,000 Hour Average LED Life*


Photometric Data:

•  12,312 Total Lumen Output (Full ON, Zoomed OUT)
•  60,451 LUX/5,616 FC @ 2m (Zoomed IN)
•  5,936 LUX/552 FC @ 2m (Zoomed OUT)
•  97,2 CRI, 86 R9 @ 2m (Zoomed IN)
•  Beam Angle 10° - 46°
•  Max Field Angle 59°
•  Color Temperature: 3000K


Effects:

•  Motorized Zoom
•  Electronic Dimmer and Strobe (1-20Hz)
•  Variable 16-bit Dimming Modes and Curves


Control and Connections:

•  Dimmer and Zoom Rotary Dials
•  (4) DMX Channel Modes (2 / 4 / 6 / 8)
•  4 Button Control Panel LCD Menu Display
•  RDM (Remote Device Management)
•  3/5pin DMX and Locking Power Cable In/Out
•  USB Service Port


Dimensions and Weight:

•  Length: 414.5mm
•  Width: 360.1mm
•  Vertical Height: 490mm
•  Weight: 9.45kg


Electrical and Thermal:

•  AC 100-240V – 50/60Hz
•  258 W Max Power Consumption
•  Working temperature: 15°C to 45°C
•  Power Linking: 10Pcs @ 240V


Included accessories:

•  Gel Frame
•  Locking Power Cable
•  Barn Doors

approvals and ratings:

•  CE | cETLus | IP20
